RF ONE offers a range of 4 way Wilkinson power dividers and lumped element power dividers with broad bandwidths and narrow bandwidths. They are optimized for wide bandwidths with high isolation, low insertion loss, good VSWR match and excellent phase and amplitude balance. Available with BNC, N type, SMA, 2.92mm, 2.4mm etc connectors. Custom frequency bands and optimized specifications available.
| P/N | Frequency Min | Frequency Max | Insertion Loss Max | Input VSWR Max | Isolation Min | Amplitude Balance Max | Phase Balance Max | Connector | Add to RFQ |
|---|---|---|---|---|---|---|---|---|---|
| PDM-1500-S4 | 0.001 GHz | 0.5 GHz | 1.3 dB | 1.45 | 18 dB | ±0.4 dB | ±4° | SMA | Add to RFQ |
| PDM-51000-S4 | 0.005 GHz | 1 GHz | 1.6 dB | 1.3 | 18 dB | ±0.4 dB | ±4° | SMA | Add to RFQ |
| PDM-10300-S4 | 0.01 GHz | 0.3 GHz | 1.0 dB | 1.25 | 20 dB | ±0.4 dB | ±4° | SMA | Add to RFQ |
| PDM-101000-S4 | 0.01 GHz | 1 GHz | 1.6 dB | 1.25 | 18 dB | ±0.4 dB | ±4° | SMA | Add to RFQ |
| PDM-50960-N4 | 0.05 GHz | 0.96 GHz | 2.0 dB | 1.25 | 18 dB | ±0.4 dB | ±4° | N | Add to RFQ |
| PDM-002027-S4 | 0.2 GHz | 2.7 GHz | 2.0 dB | 1.35 | 18 dB | ±0.3 dB | ±3° | SMA | Add to RFQ |
| PDM-0038046-S4 | 0.38 GHz | 4.6 GHz | 1.5 dB | 1.3 | 18 dB | ±0.3 dB | ±4° | SMA | Add to RFQ |
| PDM-003806-N4 | 0.38 GHz | 6 GHz | 2.0 dB | 1.35 | 18 dB | ±0.3 dB | ±4° | N | Add to RFQ |
|
PDM-003806-S4 |
0.38 GHz | 6 GHz | 1.8 dB | 1.25 | 18 dB | ±0.2 dB | ±4° | SMA | Add to RFQ |
| PDM-003808-S4 | 0.38 GHz | 8 GHz | 2.0 dB | 1.25 | 20 dB | ±0.3 dB | ±4° | SMA | Add to RFQ |
| PDM-004072-S4 | 0.4 GHz | 7.2 GHz | 2.0 dB | 1.3 | 18 dB | ±0.3 dB | ±4° | SMA | Add to RFQ |
| PDM-00501-S4 | 0.5 GHz | 1 GHz | 0.5 dB | 1.25 | 20 dB | ±0.2 dB | ±3° | SMA | Add to RFQ |
| PDM-00503-S4 | 0.5 GHz | 3 GHz | 0.7 dB | 1.23 | 20 dB | ±0.2 dB | ±3° | SMA | Add to RFQ |
|
PDM-00506-N4 |
0.5 GHz | 6 GHz | 2.0 dB | 1.3 | 18 dB | ±0.3 dB | ±4° | N | Add to RFQ |
|
PDM-00506-S4 |
0.5 GHz | 6 GHz | 1.8 dB | 1.25 | 20 dB | ±0.3 dB | ±4° | SMA | Add to RFQ |
| PDM-00506-S4A | 0.5 GHz | 6 GHz | 1.6 dB | 1.25 | 20 dB | ±0.3 dB | ±4° | SMA | Add to RFQ |
| PDM-00508-S4 | 0.5 GHz | 8 GHz | 2.0 dB | 1.3 | 18 dB | ±0.3 dB | ±4° | SMA | Add to RFQ |
|
PDM-00518-S4 |
0.5 GHz | 18 GHz | 2.5 dB | 2 | 15 dB | ±0.8 dB | ±8° | SMA | Add to RFQ |
| PDM-00510-S4 | 0.5 GHz | 10 GHz | 2.2 dB | 1.35 | 18 dB | ±0.3 dB | ±4° | SMA | Add to RFQ |
| PDM-005265-S4 | 0.5 GHz | 26.5 GHz | 3.0 dB | 1.5 | 14 dB | ±0.5 dB | ±6° | SMA | Add to RFQ |
| PDM-00540-K4 | 0.5 GHz | 40 GHz | 5.0 dB | 1.7 | 11 dB | ±0.5 dB | ±7° | 2.92mm | Add to RFQ |
| PDM-0069027-S4 | 0.69 GHz | 2.7 GHz | 0.8 dB | 1.25 | 18 dB | ±0.3 dB | ±3° | SMA | Add to RFQ |
| PDM-00698038-N4 | 0.698 GHz | 3.8 GHz | 1.6 dB | 1.3 | 24 dB | ±0.3 dB | ±4° | N | Add to RFQ |
| PDM-00698038-S4 | 0.698 GHz | 3.8 GHz | 1.4 dB | 1.25 | 20 dB | ±0.2 dB | ±3° | SMA | Add to RFQ |
| PDM-0106-S4 | 1 GHz | 6 GHz | 1.0 dB | 1.3 | 20 dB | ±0.3 dB | ±3° | SMA | Add to RFQ |
| PDM-0108-S4 | 1 GHz | 8 GHz | 1.4 dB | 1.3 | 20 dB | ±0.3 dB | ±3° | SMA | Add to RFQ |
|
PDM-0118-S4 |
1 GHz | 18 GHz | 2.5 dB | 1.55 | 16 dB | ±0.4 dB | ±5° | SMA | Add to RFQ |

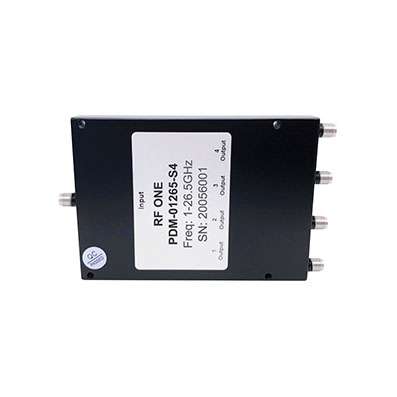

| PDM-01265-S4 | 1 GHz | 26.5 GHz | 3.0 dB | 1.5 | 16 dB | ±0.5 dB | ±6° | SMA | Add to RFQ |
| PDM-0132-K4 | 1 GHz | 32 GHz | 3.5 dB | 1.6 | 16 dB | ±0.5 dB | ±6° | 2.92mm | Add to RFQ |
| PDM-0140-K4A | 1 GHz | 40 GHz | 4.8 dB | 1.7 | 16 dB | ±0.5 dB | ±7° | 2.92mm | Add to RFQ |
| PDM-0204-S4 | 2 GHz | 4 GHz | 0.6 dB | 1.25 | 20 dB | ±0.3 dB | ±3° | SMA | Add to RFQ |
| PDM-0206-N4 | 2 GHz | 6 GHz | 0.8 dB | 1.25 | 20 dB | ±0.3 dB | ±3° | N | Add to RFQ |
| PDM-0206-S4 | 2 GHz | 6 GHz | 0.8 dB | 1.25 | 20 dB | ±0.3 dB | ±3° | SMA | Add to RFQ |
| PDM-0208-N4 | 2 GHz | 8 GHz | 1.2 dB | 1.4 | 18 dB | ±0.3 dB | ±4° | N | Add to RFQ |
|
PDM-0208-S4A |
2 GHz | 8 GHz | 1.0 dB | 1.35 | 18 dB | ±0.3 dB | ±4° | SMA | Add to RFQ |
| PDM-0218-N4 | 2 GHz | 18 GHz | 2.2 dB | 1.6 | 17 dB | ±0.4 dB | ±6° | N | Add to RFQ |
|

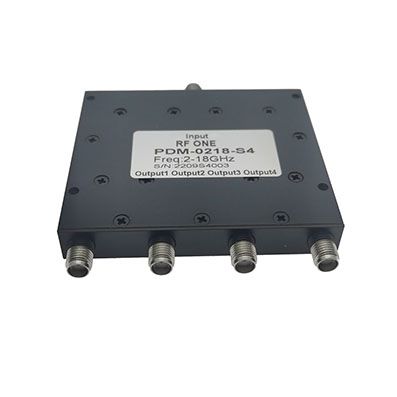

PDM-0218-S4 |
2 GHz | 18 GHz | 2.0 dB | 1.5 | 17 dB | ±0.4 dB | ±6° | SMA | Add to RFQ |
| PDM-0240-K4 | 2 GHz | 40 GHz | 3.2 dB | 1.8 | 16 dB | ±0.5 dB | ±8° | 2.92mm | Add to RFQ |

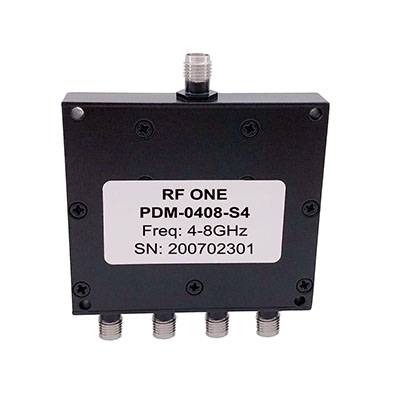

| PDM-0408-S4 | 4 GHz | 8 GHz | 1.0 dB | 1.35 | 18 dB | ±0.3 dB | ±4° | SMA | Add to RFQ |
| PDM-0412-S4 | 4 GHz | 12 GHz | 1.2 dB | 1.4 | 18 dB | ±0.2 dB | ±4° | SMA | Add to RFQ |
| PDM-0416-S4 | 4 GHz | 16 GHz | 1.5 dB | 1.4 | 18 dB | ±0.3 dB | ±5° | SMA | Add to RFQ |
| PDM-0618-S4 | 6 GHz | 18 GHz | 1.0 dB | 1.4 | 18 dB | ±0.3 dB | ±5° | SMA | Add to RFQ |
| PDM-06265-S4 | 6 GHz | 26.5 GHz | 2.0 dB | 1.7 | 16 dB | ±0.3 dB | ±3° | SMA | Add to RFQ |
|
PDM-0640-K4 |
6 GHz | 40 GHz | 2.0 dB | 2 | 15 dB | ±0.5 dB | ±8° | 2.92mm | Add to RFQ |
| PDM-0812-S4 | 8 GHz | 12 GHz | 1.0 dB | 1.25 | 18 dB | ±0.4 dB | ±4° | SMA | Add to RFQ |
| PDM-1040-K4 | 10 GHz | 40 GHz | 1.6 dB | 1.5 | 16 dB | ±0.4 dB | ±5° | 2.92mm | Add to RFQ |
| PDM-1218-S4 | 12 GHz | 18 GHz | 1.0 dB | 1.4 | 18 dB | ±0.3 dB | ±5° | SMA | Add to RFQ |
| PDM-18265-S4 | 18 GHz | 26.5 GHz | 1.0 dB | 1.5 | 16 dB | ±0.4 dB | ±5° | SMA | Add to RFQ |
| PDM-1827-K4 | 18 GHz | 27 GHz | 1.0 dB | 1.5 | 16 dB | ±0.4 dB | ±5° | 2.92mm | Add to RFQ |
| PDM-1831-K4 | 18 GHz | 31 GHz | 1.0 dB | 1.5 | 18 dB | ±0.4 dB | ±6° | 2.92mm | Add to RFQ |
|
PDM-1840-K4 |
18 GHz | 40 GHz | 1.6 dB | 1.5 | 16 dB | ±0.4 dB | ±5° | 2.92mm | Add to RFQ |
| PDM-2440-K4 | 24 GHz | 40 GHz | 1.6 dB | 1.5 | 16 dB | ±0.4 dB | ±5° | 2.92mm | Add to RFQ |
| PDM-26540-K4 | 26.5 GHz | 40 GHz | 1.6 dB | 1.5 | 16 dB | ±0.4 dB | ±5° | 2.92mm | Add to RFQ |
| PDM-2628-K4 | 26 GHz | 28 GHz | 1.0 dB | 1.4 | 20 dB | ±0.2 dB | ±5° | 2.92mm | Add to RFQ |
| PDM-2731-K4 | 27 GHz | 31 GHz | 1.0 dB | 1.5 | 16 dB | ±0.4 dB | ±5° | 2.92mm | Add to RFQ |
| PDM-305325-K4 | 30.5 GHz | 32.5 GHz | 1.4 dB | 1.5 | 16 dB | ±0.4 dB | ±4° | 2.92mm | Add to RFQ |
