Waveguide to Coax Transitions
Result: 132

RF ONE offers a complete line of waveguide to coaxial transitions with 1.0mm, 1.85mm, 2.4mm, 2.92mm, 7/16 DIN, SMA, N Connectors covering the frequency range of 0.64 to 110 GHz. Our waveguide to coaxial transitions ranging in sizes from WR10 to WR1150, WRD110 to WRD840, with various flanges and available in right angle or end launch (in-line) styles. These waveguide to coaxial transitions allows for an efficient transition between the waveguide and coaxial connector.

Customization in flanges, lower VSWR, material and finish are also available.

Filter
Waveguide Size
Waveguide Size
WRD200
WRD250
WR650
WR770
WR975
WR1150
WRD110
WRD180
WRD350
WR340
WRD475
WRD500
WRD580
WRD650
WRD750
WRD840
WR510
WR430
WR284
WR10
WR42
WR12
WR15
WR19
WR22
WR28
WR34
WR51
WR229
WR62
WR75
WR90
WR112
WR137
WR159
WR187
WR102
Coaxial Connnector
Coaxial Connnector
N
SMA
TNC
1.0mm
1.85mm
2.4mm
2.92mm
3.5mm
7/16 DIN
Body Style
Body Style
Right Angle
End Launch
Reset Filters
Export to Excel
Submit
Show 20
Show 20
Show 40
Show 60
Show 80
 1...234...7
P/N Waveguide Size Coaxial Connnector Gender Frequency Range VSWR Max Flange Type Body Style Add to RFQ
Hot

AWR101A
WR10 1.0mm Female 73.8-110 GHz 1.4 UG387/U Right Angle Add to RFQ
AWR101M WR10 1.0mm Male 73.8-110 GHz 1.4 UG387/U Right Angle Add to RFQ
Hot

AWR101EL
WR10 1.0mm Female 73.8-110 GHz 1.5 UG387/U End Launch Add to RFQ
AWR101EM WR10 1.0mm Male 73.8-110 GHz 1.5 UG387/U End Launch Add to RFQ
Hot

AWR121
WR12 1.0mm Female 60.5-91.9 GHz 1.4 UG387/U Right Angle Add to RFQ
AWR121M WR12 1.0mm Male 60.5-91.9 GHz 1.4 UG387/U Right Angle Add to RFQ
AWR121EL WR12 1.0mm Female 60.5-91.9 GHz 1.5 UG387/U End Launch Add to RFQ
AWR121EM WR12 1.0mm Male 60.5-91.9 GHz 1.5 UG387/U End Launch Add to RFQ
AWR151 WR15 1.0mm Female 50-75 GHz 1.38 UG385/U Right Angle Add to RFQ
AWR151M WR15 1.0mm Male 50-75 GHz 1.38 UG385/U Right Angle Add to RFQ
AWR151EM WR15 1.0mm Male 50-75 GHz 1.4 UG385/U End Launch Add to RFQ
AWR151EL WR15 1.0mm Female 50-75 GHz 1.4 UG385/U End Launch Add to RFQ
Hot

AWR15185
WR15 1.85mm Female 50-70 GHz 1.35 UG385/U Right Angle Add to RFQ
AWR15185EL WR15 1.85mm Female 50-70 GHz 1.35 UG385/U End Launch Add to RFQ
AWR15185MEL WR15 1.85mm Male 50-70 GHz 1.5 UG385/U End Launch Add to RFQ
AWR19185 WR19 1.85mm Female 39.2-59.6 GHz 1.35 UG-383/U Mod Right Angle Add to RFQ
Hot

AWR19185EL
WR19 1.85mm Female 39.2-59.6 GHz 1.4 UG-383/U Mod End Launch Add to RFQ
Hot

AWR2224
WR22 2.4mm Female 32.9-50 GHz 1.25 UG-383/U Right Angle Add to RFQ
AWR2224M WR22 2.4mm Male 32.9-50 GHz 1.25 UG-383/U Right Angle Add to RFQ
AWR2224EL WR22 2.4mm Female 32.9-50 GHz 1.3 UG-383/U End Launch Add to RFQ
AWR2224EM WR22 2.4mm Male 32.9-50 GHz 1.25 UG-383/U End Launch Add to RFQ
Hot

AWR28292
WR28 2.92mm Female 26.3-40 GHz 1.2 UBR320 Right Angle Add to RFQ
Hot

AWR28292EL
WR28 2.92mm Female 26.3-40 GHz 1.2 UBR320 End Launch Add to RFQ
AWR28292G WR28 2.92mm Female 26.3-40 GHz 1.2 PBR320 Right Angle Add to RFQ
AWR34292 WR34 2.92mm Female 21.7-33 GHz 1.2 UBR260 Right Angle Add to RFQ
AWR34292EL WR34 2.92mm Female 21.7-33 GHz 1.2 UBR260 End Launch Add to RFQ
Hot

AWR34292A
WR34 2.92mm Female 21.7-33 GHz 1.2 UG1530/U Right Angle Add to RFQ
AWR34292G WR34 2.92mm Female 21.7-33 GHz 1.2 PBR260 Right Angle Add to RFQ
Hot

AWR42292
WR42 2.92mm Female 17.6-26.7 GHz 1.2 UBR220 Right Angle Add to RFQ
Hot

AWR42292EL
WR42 2.92mm Female 17.6-26.7 GHz 1.2 UBR220 End Launch Add to RFQ
Hot

AWR42292A
WR42 2.92mm Female 17.6-26.7 GHz 1.2 UG595/U Right Angle Add to RFQ
AWR42SMA WR42 SMA Female 17.6-26.7 GHz 1.2 UBR220 Right Angle Add to RFQ
AWR75T WR75 TNC Female 9.84-15 GHz 1.2 UBR120 Right Angle Add to RFQ
AWR51SMA WR51 SMA Female 14.5-22 GHz 1.2 UBR180 Right Angle Add to RFQ
Hot

AWR51SMAA
WR51 SMA Female 14.5-22 GHz 1.2 MIL3922/70 Right Angle Add to RFQ
AWR51SMAEL WR51 SMA Female 14.5-22 GHz 1.2 UBR180 End Launch Add to RFQ
AWR5135 WR51 3.5mm Female 14.5-22 GHz 1.2 UBR180 Right Angle Add to RFQ
AWR62N WR62 N Female 11.9-18 GHz 1.2 UBR140 Right Angle Add to RFQ
AWR62NEL WR62 N Female 11.9-18 GHz 1.2 UBR140 End Launch Add to RFQ
Hot

AWR62SMA
WR62 SMA Female 11.9-18 GHz 1.2 UBR140 Right Angle Add to RFQ
AWR62SMAEL WR62 SMA Female 11.9-18 GHz 1.2 UBR140 End Launch Add to RFQ

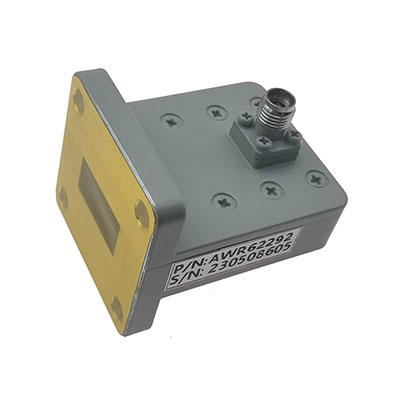

AWR62292 WR62 2.92mm Female 11.9-18 GHz 1.2 UBR140 Right Angle Add to RFQ

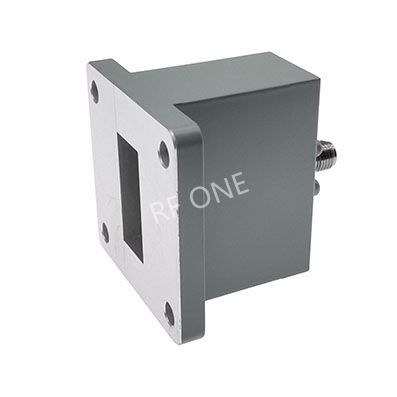

AWR62292EL WR62 2.92mm Female 11.9-18 GHz 1.2 UBR140 End Launch Add to RFQ

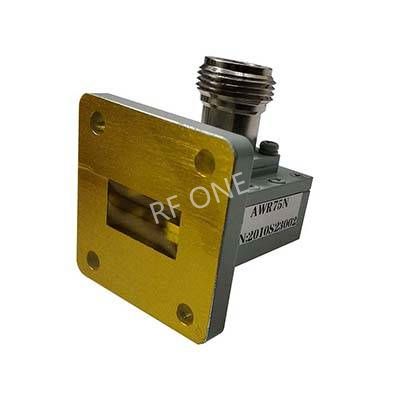

AWR75N WR75 N Female 9.84-15 GHz 1.2 UBR120 Right Angle Add to RFQ
AWR75NR WR75 N Female 9.84-15 GHz 1.2 UDR120 Right Angle Add to RFQ
AWR75NM WR75 N Male 9.84-15 GHz 1.25 UBR120 Right Angle Add to RFQ

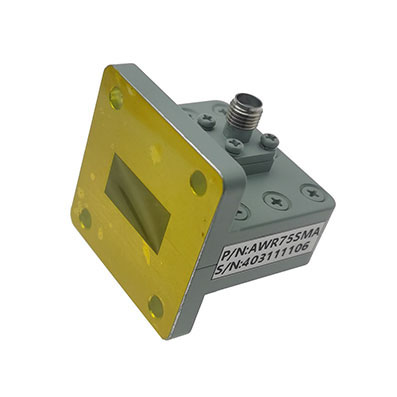

AWR75SMA WR75 SMA Female 9.84-15 GHz 1.2 UBR120 Right Angle Add to RFQ

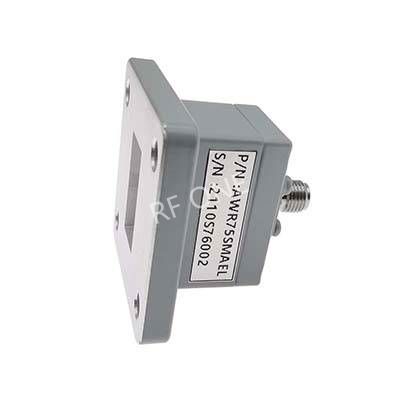

AWR75SMAEL WR75 SMA Female 9.84-15 GHz 1.2 UBR120 End Launch Add to RFQ
AWR75SMAEU WR75 SMA Female 9.84-15 GHz 1.2 UDR120 End Launch Add to RFQ
AWR90N WR90 N Female 8.2-12.5 GHz 1.2 UBR100 Right Angle Add to RFQ
AWR90NEL WR90 N Female 8.2-12.5 GHz 1.2 UBR100 End Launch Add to RFQ

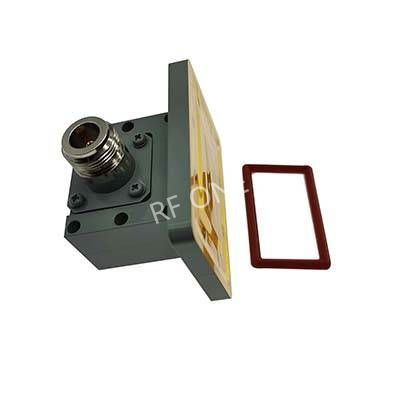

AWR90NG WR90 N Female 8.2-12.5 GHz 1.2 PDR100 Right Angle Add to RFQ
Hot

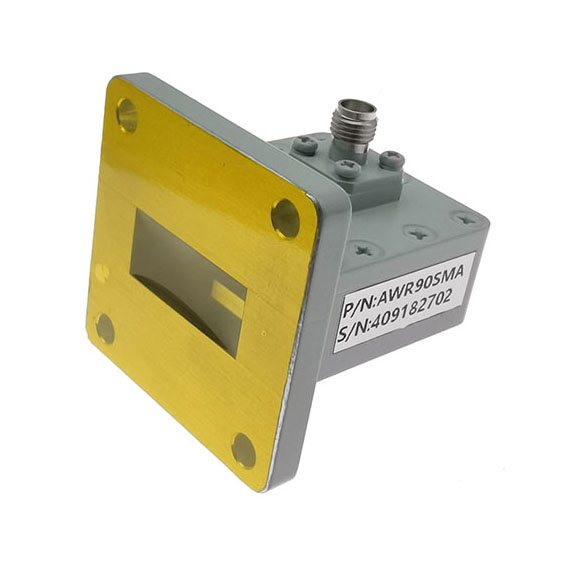

AWR90SMA
WR90 SMA Female 8.2-12.4 GHz 1.2 UBR100 Right Angle Add to RFQ

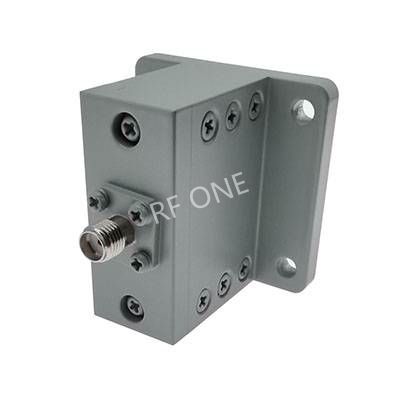

AWR90SMAEL WR90 SMA Female 8.2-12.4 GHz 1.2 UBR100 End Launch Add to RFQ

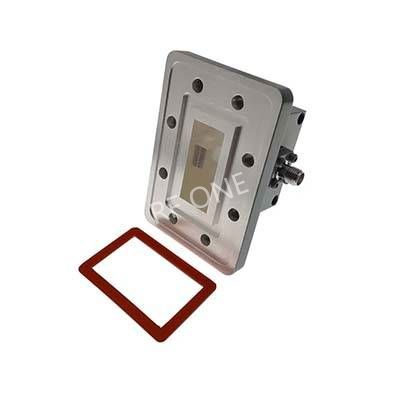

AWR90SMAG WR90 SMA Female 8.2-12.4 GHz 1.2 PDR100 Right Angle Add to RFQ
AWR90T WR90 TNC Female 8.2-12.5 GHz 1.2 UBR100 Right Angle Add to RFQ

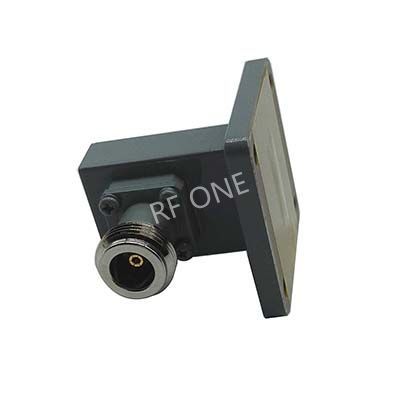

AWR102N WR102 N Female 7-11 GHz 1.25 UG-1493/U Right Angle Add to RFQ

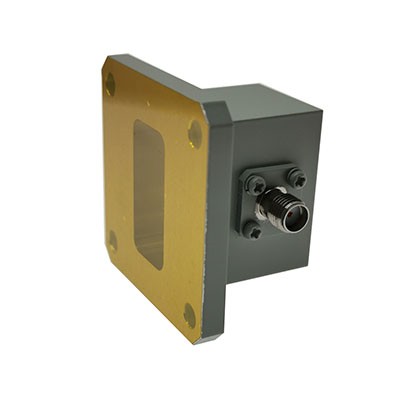

AWR102SMA WR102 SMA Female 7-11 GHz 1.25 UG-1493/U Right Angle Add to RFQ

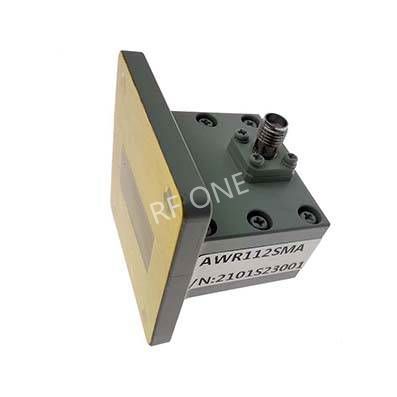

AWR112SMA WR112 SMA Female 6.57-9.9 GHz 1.2 UBR84 Right Angle Add to RFQ
AWR112N WR112 N Female 6.57-9.9 GHz 1.2 UBR84 Right Angle Add to RFQ
AWR112NR WR112 N Female 6.57-9.9 GHz 1.2 UDR84 Right Angle Add to RFQ
AWR112NG WR112 N Female 6.57-9.9 GHz 1.2 PDR 84 Right Angle Add to RFQ
Hot

AWR112SMAEL
WR112 SMA Female 6.57-9.9 GHz 1.2 UBR84 End Launch Add to RFQ
AWR112SMAREL WR112 SMA Female 6.57-9.9 GHz 1.2 UDR84 End Launch Add to RFQ
AWR112SMAG WR112 SMA Female 6.57-9.9 GHz 1.2 PDR 84 Right Angle Add to RFQ
Hot

AWR137N
WR137 N Female 5.37-8.17 GHz 1.2 UDR70 Right Angle Add to RFQ
AWR137NEL WR137 N Female 5.37-8.17 GHz 1.25 UDR70 End Launch Add to RFQ
AWR137NELG WR137 N Female 5.37-8.17 GHz 1.25 PDR70 End Launch Add to RFQ
AWR137NG WR137 N Female 5.37-8.2 GHz 1.2 PDR70 Right Angle Add to RFQ
AWR137NM WR137 N Male 5.38-8.17 GHz 1.25 UDR70 Right Angle Add to RFQ
Hot

AWR137SMA
WR137 SMA Female 5.37-8.17 GHz 1.2 UDR70 Right Angle Add to RFQ
AWR137SMAEL WR137 SMA Female 5.37-8.2 GHz 1.2 UDR70 End Launch Add to RFQ
AWR137SMAG WR137 SMA Female 5.37-8.17 GHz 1.2 PDR70 Right Angle Add to RFQ
AWR159N WR159 N Female 4.64-7.05 GHz 1.2 UDR58 Right Angle Add to RFQ
Hot

AWR159SMA
WR159 SMA Female 4.64-7.05 GHz 1.2 UDR58 Right Angle Add to RFQ
AWR159SMAEL WR159 SMA Female 4.64-7.05 GHz 1.2 UDR58 End Launch Add to RFQ
AWR159SMAG WR159 SMA Female 4.64-7.05 GHz 1.2 PDR58 Right Angle Add to RFQ
AWR159SMAELG WR159 SMA Female 4.64-7.05 GHz 1.2 PDR58 End Launch Add to RFQ
AWR187N WR187 N Female 3.94-5.99 GHz 1.2 UDR48 Right Angle Add to RFQ
AWR187NEL WR187 N Female 3.94-5.99 GHz 1.2 UDR48 End Launch Add to RFQ
AWR187SMA WR187 SMA Female 3.94-5.99 GHz 1.2 UDR48 Right Angle Add to RFQ
AWR187SMAM WR187 SMA Male 3.94-5.99 GHz 1.2 UDR48 Right Angle Add to RFQ
AWR229N WR229 N Female 3.22-4.9 GHz 1.2 UDR40 Right Angle Add to RFQ
AWR229NG WR229 N Female 3.22-4.9 GHz 1.2 PDR40 Right Angle Add to RFQ
AWR229SMA WR229 SMA Female 3.22-4.9 GHz 1.2 UDR40 Right Angle Add to RFQ
AWR284D WR284 7/16 DIN Female 2.6-3.95 GHz 1.2 UDR32 Right Angle Add to RFQ
AWR284DG WR284 7/16 DIN Female 2.6-3.95 GHz 1.2 PDR32 Right Angle Add to RFQ
AWR284DEL WR284 7/16 DIN Female 2.6-3.95 GHz 1.2 UDR32 End Launch Add to RFQ
AWR284N WR284 N Female 2.6-3.95 GHz 1.2 UDR32 Right Angle Add to RFQ
AWR284NG WR284 N Female 2.6-3.95 GHz 1.2 UDR32 Right Angle Add to RFQ
AWR284SMA WR284 SMA Female 2.6-3.95 GHz 1.2 UDR32 Right Angle Add to RFQ
AWR340D WR340 7/16 DIN Female 2.17-3.3 GHz 1.2 UDR26 Right Angle Add to RFQ
AWR340N WR340 N Female 2.17-3.3 GHz 1.2 UDR26 Right Angle Add to RFQ
AWR340SMA WR340 SMA Female 2.17-3.3 GHz 1.2 UDR26 Right Angle Add to RFQ
AWR430DG WR430 7/16 DIN Female 1.72-2.61 GHz 1.2 RDR22 Right Angle Add to RFQ
AWR430N WR430 N Female 1.72-2.61 GHz 1.2 UDR22 Right Angle Add to RFQ
AWR430SMA WR430 SMA Female 1.72-2.61 GHz 1.2 UDR22 Right Angle Add to RFQ
AWR510N WR510 N Female 1.45-2.2 GHz 1.2 RDR22 Right Angle Add to RFQ
AWR650N WR650 N Female 1.13-1.73 GHz 1.2 UDR14 Right Angle Add to RFQ
AWR650SMA WR650 SMA Female 1.13-1.73 GHz 1.2 UDR14 Right Angle Add to RFQ
AWR770N WR770 N Female 0.96-1.46 GHz 1.2 UDR12 Right Angle Add to RFQ
AWR770SMA WR770 SMA Female 0.96-1.46 GHz 1.2 UDR12 Right Angle Add to RFQ
AWR770D WR770 7/16 DIN Female 0.96-1.46 GHz 1.2 UDR12 Right Angle Add to RFQ
AWR975D WR975 7/16 DIN Female 0.76-1.15 GHz 1.25 UDR9 Right Angle Add to RFQ
AWR975N WR975 N Female 0.76-1.15 GHz 1.2 UDR9 Right Angle Add to RFQ
AWR975SMA WR975 SMA Female 0.76-1.15 GHz 1.2 UDR9 Right Angle Add to RFQ
AWR1150N WR1150 N Female 0.64-0.98 GHz 1.3 UDR8 Right Angle Add to RFQ
AWRD110SMA WRD110 SMA Female 11-26.5 GHz 1.3 FPWRD110 Right Angle Add to RFQ
AWRD110SMAEL WRD110 SMA Female 11-26.5 GHz 1.3 FPWRD110 End Launch Add to RFQ
AWRD18024 WRD180 2.4mm Female 18-40 GHz 1.5 FPWRD180 Right Angle Add to RFQ
AWRD180292 WRD180 2.92mm Female 18-40 GHz 1.3 FPWRD180 Right Angle Add to RFQ
AWRD180292EL WRD180 2.92mm Female 18-40 GHz 1.4 FPWRD180 End Launch Add to RFQ
AWRD200DHP WRD200 7/16 DIN Female 2-4.8 GHz 1.25 FPWRD200 Right Angle Add to RFQ
AWRD200N WRD200 N Female 2-6 GHz 1.3 FPWRD200 Right Angle Add to RFQ
AWRD250N WRD250 N Female 2.6-7.8 1.3 FPWRD250 Right Angle Add to RFQ
AWRD250NEL WRD250 N Female 2.6-7.8 1.3 FPWRD250 End Launch Add to RFQ
AWRD350N WRD350 N Female 3.5-8.2 GHz 1.3 FPWRD350 Right Angle Add to RFQ
AWRD475N WRD475 N Female 4.75-11 GHz 1.2 FPWRD475 Right Angle Add to RFQ
AWRD500N WRD500 N Female 5-18 GHz 1.3 FPWRD500 Right Angle Add to RFQ
AWRD500SMA WRD500 SMA Female 5-18 GHz 1.3 FPWRD500 Right Angle Add to RFQ
AWRD580N WRD580 N Female 5.8-16 GHz 1.3 FPWRD580 Right Angle Add to RFQ
AWRD580SMA WRD580 SMA Female 5.8-16 GHz 1.3 FPWRD580 Right Angle Add to RFQ
AWRD580T WRD580 TNC Female 5.8-16 GHz 1.3 FPWRD580 Right Angle Add to RFQ
Hot

AWRD650N
WRD650 N Female 6.5-18 GHz 1.3 FPWRD650 Right Angle Add to RFQ
AWRD650NEL WRD650 N Female 6.5-18 GHz 1.3 FPWRD650 End Launch Add to RFQ
AWRD650S WRD650 SMA Female 6.5-18 GHz 1.25 FPWRD650 Right Angle Add to RFQ
AWRD750N WRD750 N Female 7.5-18 GHz 1.3 FPWRD750 Right Angle Add to RFQ
AWRD750NEL WRD750 N Female 7.5-18 GHz 1.3 FPWRD750 End Launch Add to RFQ
AWRD750S WRD750 SMA Female 7.5-18 GHz 1.25 FPWRD750 Right Angle Add to RFQ
AWRD750T WRD750 TNC Female 7.5-18 GHz 1.3 FPWRD750 Right Angle Add to RFQ
AWRD750TEL WRD750 TNC Female 7.5-18 GHz 1.3 FPWRD750 End Launch Add to RFQ
AWRD840N WRD840 N Female 0.8-2 GHz 1.3 FPWRD840 Right Angle Add to RFQ
